This new model, it is the second to be launched after the SY 64 who draw very positive comments, and achieved great success at the 2017 Dusseldorf Yacht Show. She is the smaller of a projected line of ve motor yacht planned for the near future by Sirena Yachts.

Like her predecesor the 64, she bene ted from the development of the hull underbody intended to be e cient, and to have best performance at a wide range of Froude numbers, from displacement mode up to planning condition. She will be able to go to all corners of the world, cruising in comfort and safety with low fuel consumption.

The construction it is done using resin infusion for best ber to resin content. The scant links and hull reinforcements have been planned to comply with ISO 12215 requirements.

Aesthetically she shows the strong purposeful character of an expedition yacht having full headroom throughout, large uncluttered deck areas, large glass window surfaces and a y bridge which it is larger than than the norm.

The volume inside it very ample for a yacht of her size. The joinery work built out of high quality woods and fabrics, o ers several options available regarding interior layout to maximize the enjoyment of life at sea according to each individual needs.

Germán Frers

MY INTERIORS

We can say that main concept of Sirena Yachts interiors is COMFORT and LIGHT.

When we started discussing the concept with Miss Ipek and the shipyard, the mission we got was to create a warm and elegant space, which could mix high tech and handcrafting capabilities.

Basing on this, we designed a space where LIGHT and COMFORT are the main features, integrating with exteriors in a harmonious way of living the sea.

Thanks to the building skills of the shipyard, new technical solutions and extremely accurate handcrafted details have been implemented, always bearing in mind the full confort of the owners and their guests.

The cabins and the whole boat are designed to suggest a serene elegance and a pleasant staying.

Interior style is defined by a skilful use of several tones of WHITE, carefully mixed with a touch of dark colour defining frames and panels; wood is oak, combined with wengè; a light and soft moquette on the floor amplifies space and underlines the design.

Tommaso Spadolini

Max Length LMAX ISO 8666 (Incl. swim platform and excl. pulpit)
18,58 m / 61’
Hull Length LH ISO 8666 (Net GRP-swim platform excluded)
17,18 m / 56’ 4”
Waterine Length LWL ISO 8666 Full load condition
17,00 m / 55’ 9”
Hull Beam BHmax ISO 8666 (© Mid-ship section)
5,36 m / 17’7”
Max Draft - TMAX ISO 8666
1,24 m / 4’ 1”
Loaded displacement mass-mLDC ISO 8666
34,5 tonnes (with 2 x CAT C8.7) / 76279 lbs
36 tonnes (with 2 x CAT C12.9) - optional / 79366 lbs
Light craft condition mass-mLCC ISO 8666 ( Dry displacement, no crew, no luggage)
28 tonnes (with 2 x CAT C8.7) / 61730 lbs
29,5 tonnes (with 2 x CAT C12.9) - optional / 65036 lbs
Engines
CAT C 8.7 - 650Hp x 2
CAT C 12.9 - 850Hp x 2 - optional
Marine gears
ZF 325 IV (CAT C8.7)
ZF 335 IV (CAT C12.9) - optional
Reduction ratio
2.037: 1 (ZF 325 IV)
1 .964: 1 (ZF 335 IV) - optional
Transmission
V Drive
Propeller Diameter (Max)
800 mm / 2’6”
Max Speed
27 knots
30 knots
Cruising Speed
16 knot
Economy Cruising Speed
10 knot
Range 10 kn (incl. 10% Reservoir)
850 NM
Certification
CE Category A
Diesel Tank Capacity
3600 l / 950 gal
Fresh Water Tank
800 l / 210 gal
Black Water Tank Capacity
450 l / 120 gal
Gray Water Tank Capacity
225 l / 60 gal
Cabins
3 standard + 1 (optional crew cabin)
Beds
6 + (1 crew)
Heads
3 + 1 (crew head)
Building Material
GRP / Carbon hybrid fiber
Hull Type
Semi Displacement
Exterior Styling & Concept
Frers Naval Architecture & Engineering
Interior Decor
Design Studio Spadolini
Hull Design
Frers Naval Architecture & Engineering
Max Length LMAX ISO 8666
(Included swim platform and pulpit)
20,74 m / 68’
Hull Length LH ISO 8666
(Net GRP-swim platform exluded)
19,33 m / 63’4”
Waterine Length LWL ISO 8666
19,06 m (@ full load) / 62’5”
Hull Beam BHmax ISO 8666
5,9 m / 19’4”
Max Draft - TMAX ISO 8666
1,27 m (@ full load) / 4’17”
Loaded displacement mass-mLDC ISO 8666
46 tonnes / 101,412 lbs
Height above the waterline Ha ISO 8666
6,33 m (without equipment on top) / 20’8”
Light craft condition mass - mLCC ISO 8666
38 tonnes / 83,775 lbs
Engines
CAT C12.9 - 850Hp x 2
CAT C12.9 - 1000Hp x 2 (optional)
Marine gears
ZF 335 IV
ZF 500 IV (optional)
Reduction ratio
1.964:1
Transmission
V Drive
Propeller diameter (max)
860 mm / 33.9’’
Max Speed
26 knots (with 850Hp engine)
28 knots (with 1000Hp engine)
Cruising Speed
16 knot
Economy cruising Speed
10 knot
Consumption @ cruising speed 16 kn
130 l/hr / 34 gal/hr
Consumption @ 10 kn
38 l/hr / 10 gal/hr
Range 10 kn (incl. 10% reservoir)
Approx. 1.200 NM
Certificatio
CE Category A
Diesel tank capacity
5000 l / 1320 gal
Fresh water tank
1400 l / 369 gal
Black water tank capacity
400 l / 105 gal
Gray water tank capacity
400 l / 105 gal
Cabins
3 standard + 1 (optional crew cabin)
Beds
6 + (2 crews)
Heads
4 + 1 (crew head)
Building material
GRP / Carbon hybrid fiber
Hull type
Semi Displacement
Exterior styling & concept
Frers Naval Architecture & Engineering
Interior Decor
Design Studio Spadolini
Hull Design
Frers Naval Architecture & Engineering
Length Overal l m. (L.O.A.)
26,735
Length of Hull m.
23,95
Length of Water Line m. (L.W.L.)
N/A
Beam Max m.
7,1
Draft m.
N/A
Displacement t. (Light Ship)
80
Max Speed kn.
25 (with opt. engine)
Engines
2x 1400 Hp MAN V12
2x 1550 Hp MAN V12 (Optional)
Range nm.
2500+ @ 10 knot
Fuel Capacity
17000 lt
Fresh Water Capacity
2500 lt
Black Water Capacity
850-1000 lt
Grey Water Capacity
850-1000 lt
Cabins
5+2 (10+3)
4+2 (8+3) – alternative selection
Material
GRP hull and deck – Carbon Fiber superstructure
Exterior Design
German Frers
Interior Design
Cor D. Rover
Certification
CE Category A

SIRENA MARINE

Founded in 2006 by Kıraça Holding, Sirena is a prominent manufacturer in the yachting and automotive sectors.

Its initial agreement with world-renowned Italian motoryacht producer Azimut-Benetti Group (which evolved ino a partnership in 2008) hasled into Sirena becoming the first yacht mass manufacturer in Turkey, with more than 250 motor yachts and 90 sailboats until now, as well as designing 2 successful Azimut models. Today, the collaboration withAzimut-Benetti continues with the manufacturing of Magellano 43 in the company’s recently expanded 155.000 square-meter facilities located in Bursa Orhangazi.

Sirena's vision is to develop world brands in Turkey, integrating thetalent of world-leading designers such as Rob Humphreys and Germán Frers, with its hard-won manufacturing expertise and considerable engineering know-how. This has led to Sirena's award-winning Azuree sailboat brand, the outstanding Euphoria luxury sailboat series and the company's newly born Sirena motor yacht.

Having discovered that its expertise can be fruitfully applied to more than yachts, Sirena has also recently expanded into producing composite and stainless items for rail systems, automotive, defense and heavy equipment sectors. The dedication to high quality and world-wide brand development that characterize the company have attracted customers from around the globe, from Europe to USA, Australia and Japan.

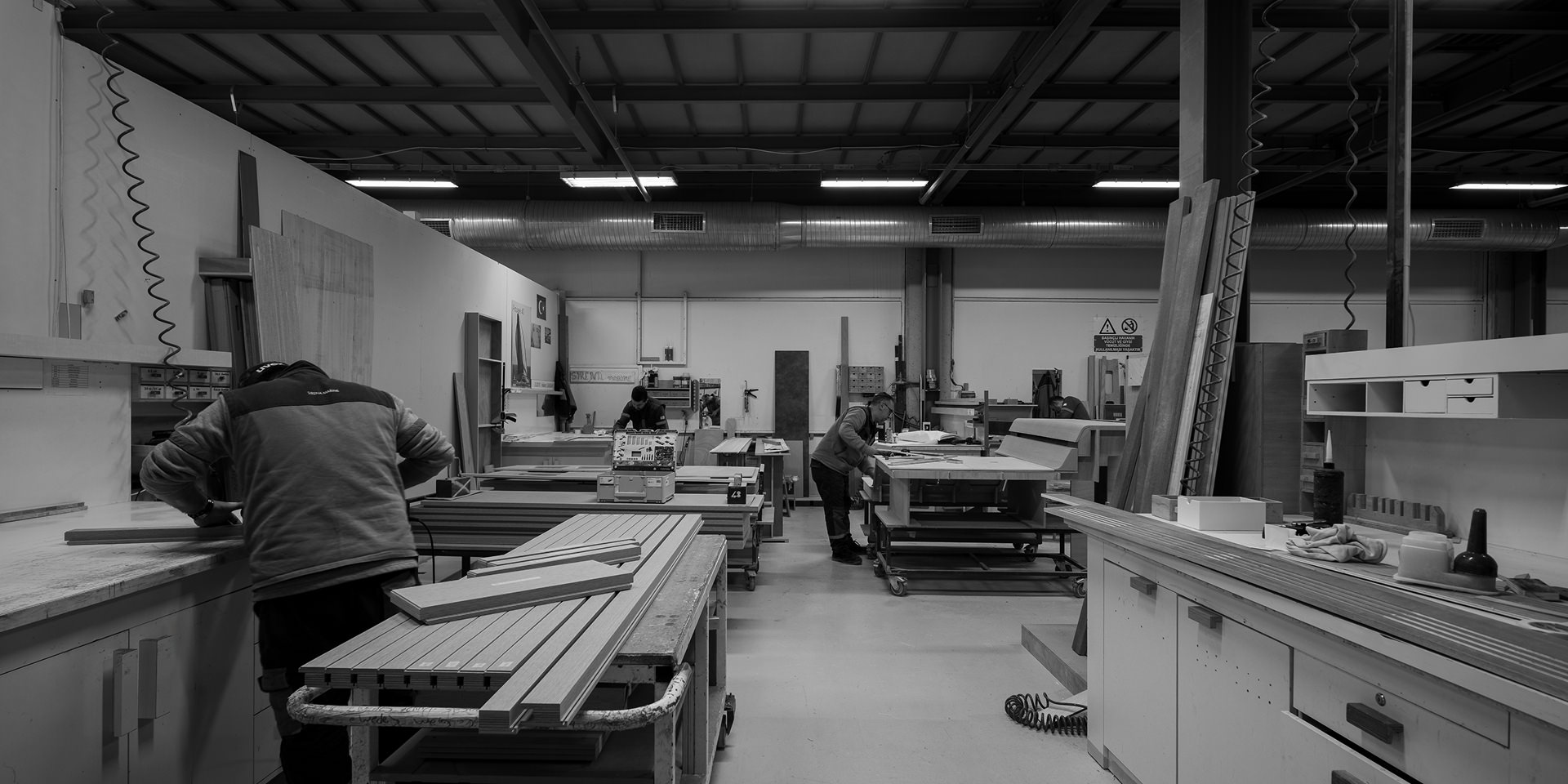

4 internal workshops

To guaranteee maximum quality of high-perception elements: Furnitures, Stainless Steel, Teak, Uphostery.

State of the Art

Technological area to guarantee top quality for Moulds, Hulls, Decks.

155.000 sqm
(35.000 sqm inclosed)
550+ Employees
