MY INTERIORS

We can say that main concept of Sirena Yachts interiors is COMFORT and LIGHT.

When we started discussing the concept with Miss Ipek and the shipyard, the mission we got was to create a warm and elegant space, which could mix high tech and handcrafting capabilities.

Basing on this, we designed a space where LIGHT and COMFORT are the main features, integrating with exteriors in a harmonious way of living the sea.

Thanks to the building skills of the shipyard, new technical solutions and extremely accurate handcrafted details have been implemented, always bearing in mind the full confort of the owners and their guests.

The cabins and the whole boat are designed to suggest a serene elegance and a pleasant staying.

Interior style is defined by a skilful use of several tones of WHITE, carefully mixed with a touch of dark colour defining frames and panels; wood is oak, combined with wengè; a light and soft moquette on the floor amplifies space and underlines the design.

Tommaso Spadolini

Back in 2014 Sirena Marine set out to produce a line of five different size motor yachts ranging in size from 56’to 120’in length. The brief called for a sturdy expedition type Motor Yachts with distinctive character, a modern and practical distribution of open spaces suitable for the enjoyment of life on board, generous fly bridge fore and aft sitting areas.

For the 64, the first model of the line to be launched, there are three optional interior layouts of generous volume for serious world family cruising in great comfort including large glass windows for a good view to the sea and plenty of natural light. The hull design was developed in depth, including testing of three families of models at the Wolfson Unit towing tank facility in Southampton. In addition, sea keeping tests were conducted on a self propelled 1/3 scale model of the hull.

The result; it is a pleasant sea kindly low drag canoe body capable of planning at high speed or cruising in semi-displacement, low fuel consumption mode. The hull stability is well matched to the needs of the gyroscopic stabilisers to insure cruising or anchoring in great comfort. All in all I am satisfied to say working with the Sirena Marine Team including the interior Designer Tommaso Spadolini we have created an aesthetically attractive motor yacht that will appeal to a great number of mariners and their families.

Max Length LMAX ISO 8666 (Included swim platform and pulpit)
18,68 m
Hull Length LH ISO 8666 (Net GRP-swim platform exluded)
16,20 m
Waterine Length LWL ISO 8666 Full load conditions
16,00 m
Hull Beam BHmax ISO 8666 (© Mid-ship section)
5,35 m
Max Draft - TMAX ISO 8666
0,98 m
Loaded displacement mass-mLDC ISO 8666
30 Tonnes (with 2 x CAT C8.7)
31 Tonnes (with 2 x CAT C12.9) - Optional
Light craft condition mass-mLCC ISO 8666 ( Dry displacement, no crew, no luggage)
25 Tonnes (with 2 x CAT C8.7)
26 Tonnes (with 2 x CAT C12.9) - Optional
Engines
CAT C 8.7 - 650 HP x 2
CAT C 12.9 - 850 HP x 2 - Optional
Marine gears
ZF 325 IV (CAT C8.7)
ZF 325 IV (CAT C12.9) - Optional
Max Speed
25 knot (@half load)
26 knot (@half load with opt. engine)
Cruising Speed
16 knot
Range 10 kn (incl. 10% reservoir)
850 NM
Diesel tank capacity
3600 I
Fresh water tank
800 I
Black water tank capacity
450 I
Gray water tank capacity
225 I
Cabins
3 Standard + 1 (optional crew cabin)
Beds
6 + 1 (1 crew)
Heads
3 + 1 (crew head)
Hull type
Semi Displacement
Exterior styling & concept
Frers Naval Architecture & Engineering
Interior Decor
Design Studio Spadolini
Hull Design
Frers Naval Architecture & Engineering
Max Length LMAX ISO 8666
(Included swim platform and pulpit)
20,74 m
Hull Length LH ISO 8666
(Net GRP-swim platform exluded)
19,21 m
Waterine Length LWL ISO 8666
19,06 m (@ full load)
Hull Beam BHmax ISO 8666
5,86 m
Max Draft - TMAX ISO 8666
1,27 m (@ full load)
Loaded displacement mass-mLDC ISO 8666
44 tonnes
Height above the waterline Ha ISO 8666
6,33 m (without equipment on top)
Engines (standard)
CAT C12.9 - 850 HP x 2
Marine gears
ZF 335 IV
Reduction ratio
1.964:1
Transmission
V Drive
Propeller diameter (max)
860 mm
Max Speed
26 knots (@half load)
28 knots (@half load with opt. engine)
Cruising Speed
16 knots
Economy cruising Speed
10 knots
Consumption @ cruising speed 16 kn
127 I/hr
Consumption @ 10 kn
48 I/hr
Range 10 kn (incl. 10% reservoir)
Approx. 1.000 NM
Diesel tank capacity
5300 I
Fresh water tank
1450 I
Black water tank capacity
400 I
Gray water tank capacity
400 I
Cabins
3 Standard + 1 (optional crew cabin)
Beds
6 + (2 crews)
Heads
4 + 1 (crew head)
Building material
GRP
Hull type
Semi Displacement
Exterior styling & concept
Frers Naval Architecture & Engineering
Interior Decor
Design Studio Spadolini
Hull Design
Frers Naval Architecture & Engineering

SIRENA MARINE

Founded in 2006 by Kıraça Holding, Sirena is a prominent manufacturer in the yachting and automotive sectors.

Its initial agreement with world-renowned Italian motoryacht producer Azimut-Benetti Group (which evolved ino a partnership in 2008) hasled into Sirena becoming the first yacht mass manufacturer in Turkey, with more than 250 motor yachts and 90 sailboats until now, as well as designing 2 successful Azimut models. Today, the collaboration withAzimut-Benetti continues with the manufacturing of Magellano 43 in the company’s recently expanded 155.000 square-meter facilities located in Bursa Orhangazi.

Sirena's vision is to develop world brands in Turkey, integrating thetalent of world-leading designers such as Rob Humphreys and Germán Frers, with its hard-won manufacturing expertise and considerable engineering know-how. This has led to Sirena's award-winning Azuree sailboat brand, the outstanding Euphoria luxury sailboat series and the company's newly born Sirena motor yacht.

Having discovered that its expertise can be fruitfully applied to more than yachts, Sirena has also recently expanded into producing composite and stainless items for rail systems, automotive, defense and heavy equipment sectors. The dedication to high quality and world-wide brand development that characterize the company have attracted customers from around the globe, from Europe to USA, Australia and Japan.

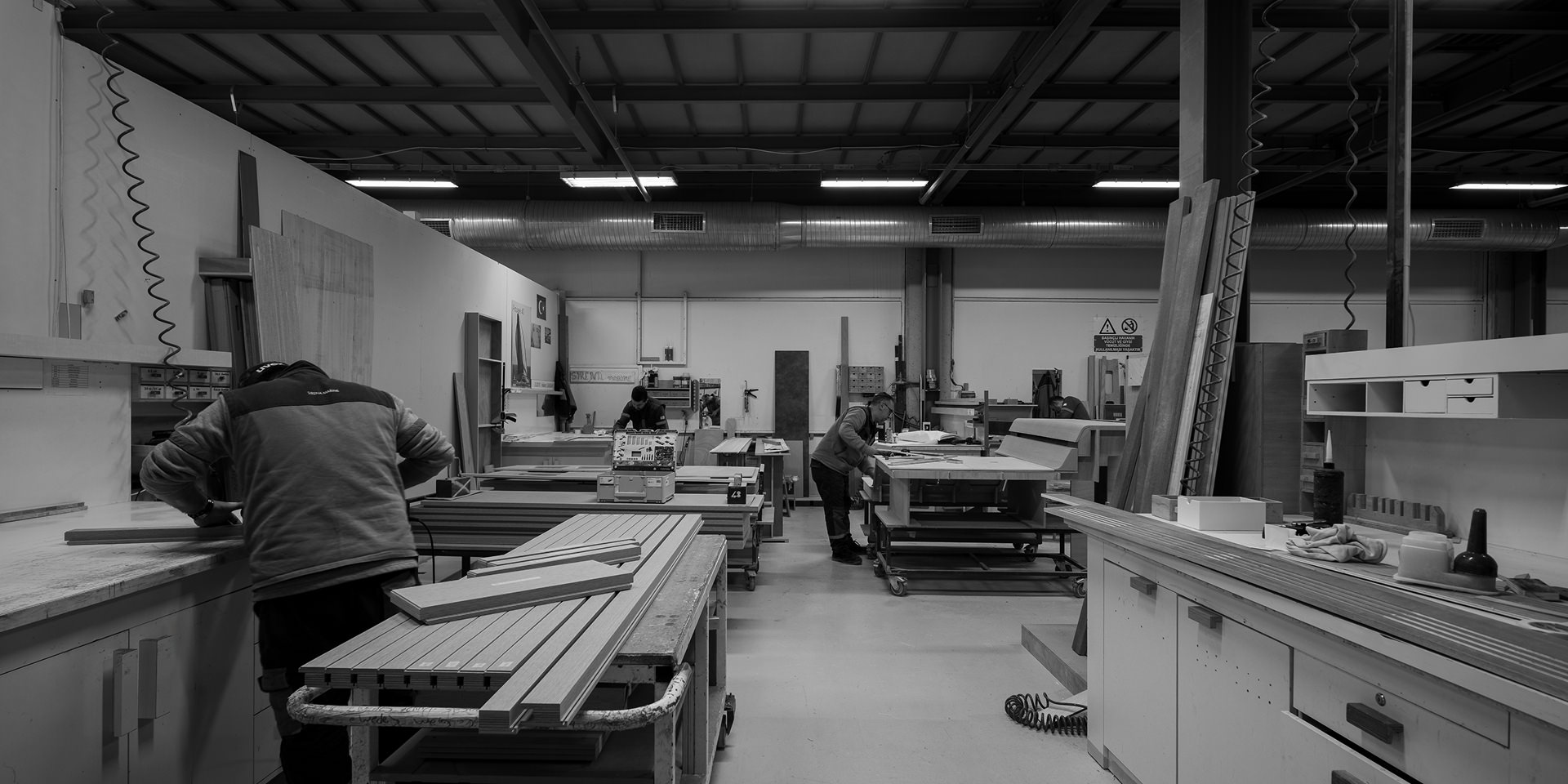

4 internal workshops

To guaranteee maximum quality of high-perception elements: Furnitures, Stainless Steel, Teak, Uphostery.

State of the Art

Technological area to guarantee top quality for Moulds, Hulls, Decks.

155.000 sqm
(35.000 sqm inclosed)
550+ Employees

Sirena Marine Environmental Policy

Sirena Marine’s environmental management system keeps under control the environmental impact of its production processes and services. Sirena Marine consistently improves its environmental performance and complies with all environmental laws and regulations.

Sirena Marine’s policies involve the following: To protect and sustain the environment by complying with all environmental laws and regulations, keeping environmental impact under control, reducing adverse effects, continuously improving environmental performance, increasing environmental awareness in all production operations, to keep the environment for future generations.

Sirena Marine San. ve Tic. A.Ş. implements this policy by complying with the following:

  • To follow and fulfil the requirements of environmental legislation,
  • To continuously improve our environmental management systems,
  • To minimize waste, prevent pollution at its source, increase the efficiency of energy use and reduce the adverse effects of production and service activities on the environment,
  • To identify the risks related to environmental hazards and to reduce them,
  • To increase the environmental awareness of employees through training,
  • To provide the human resources, technology and financial resources needed to reduce our impact on the environment, and
  • To increase the environmental awareness of our suppliers and all stakeholders and to encourage them to respect the environment.
